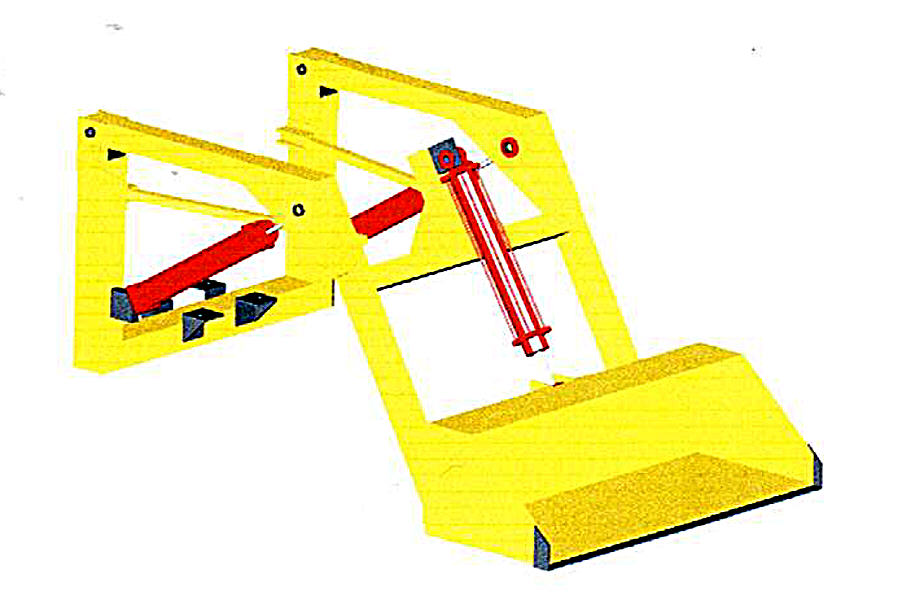

Here is a set of plans for fabricating a garden tractor size front end loader. This is designed on the heavy side and substituting thinner walled material to lighten the loader is acceptable. Please do not go any thinner than 1/8". The design calls for 2" bore x 16" stroke cylinders at all areas.
The plans are free to download and you may directly fabricate the front end loader from the plans or use them to aide you in designing your own version. This original version is not intended for resale.
